Dcc Mcp Touchdesigner

Typed, main-thread-safe TouchDesigner control for the DCC Model Context Protocol.

The adapter embeds the DCC-MCP HTTP runtime in TouchDesigner, registers the instance with the local gateway, and executes TouchDesigner API work through the documented td.run() scheduler. Agents can inspect and edit operator networks, parameters, Unicode DAT content, and root timeline state, then save projects and export TOP images without sending TouchDesigner objects to background threads.

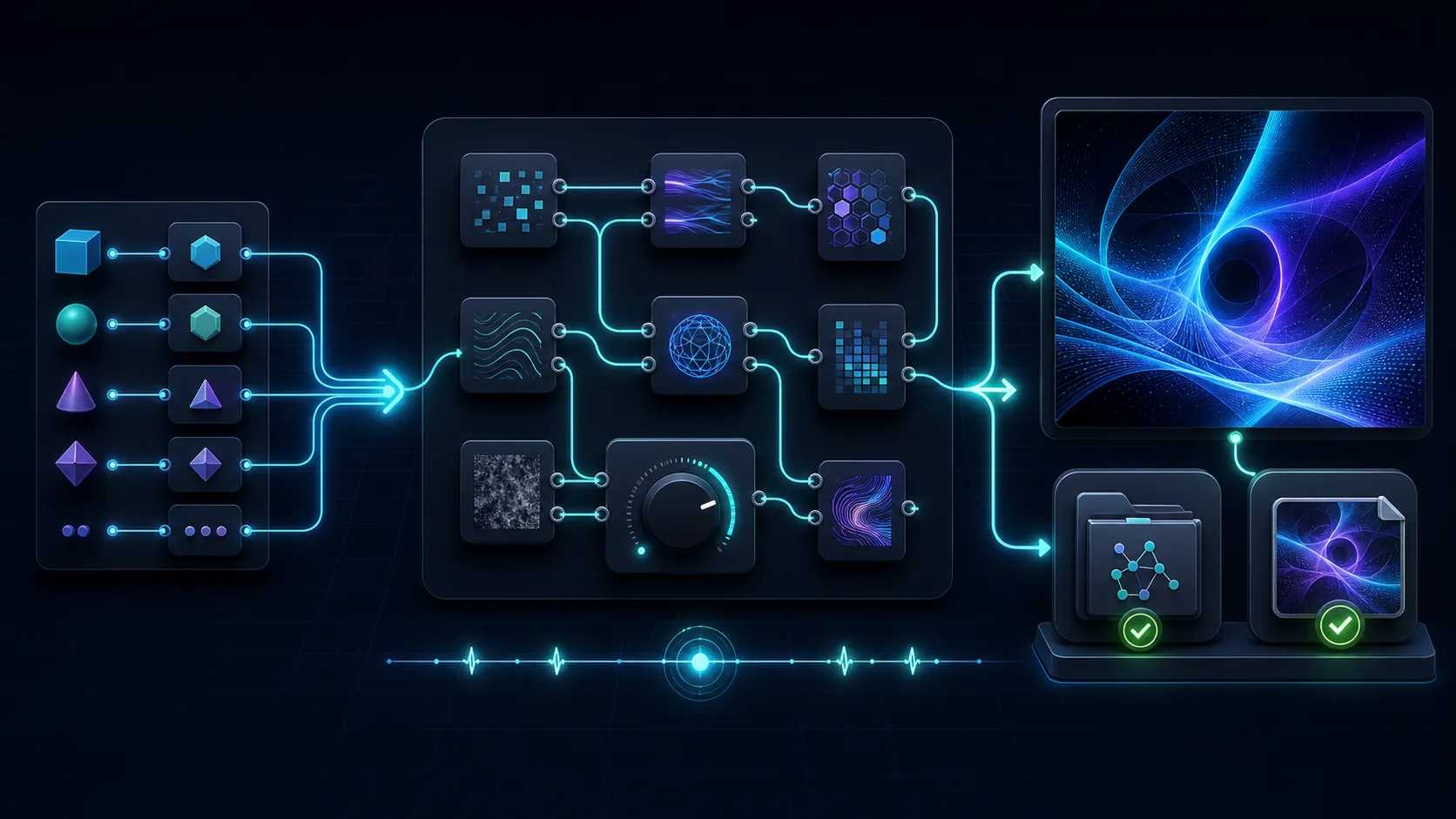

Illustrative workflow visualization generated with OpenAI ImageGen from the retained source in docs/images/sources. It is not a TouchDesigner screenshot or host-validation artifact. The header uses an approved operator-network reference motif rather than an official host mark.

Install

TouchDesigner 2025 uses Python 3.11. Install this package into a matching external environment and expose that environment to TouchDesigner. The preferred TouchDesigner 2025 route is the built-in TDPyEnvManager; the Preferences dialog's external Python module path is also supported.

py -3.11 -m venv .venv
.\.venv\Scripts\python -m pip install --upgrade pip
.\.venv\Scripts\python -m pip install dcc-mcp-touchdesigner

See install.md for the complete Windows and macOS setup, dependency isolation guidance, and startup configuration. TouchDesigner documents both external Python packages and the TDPyEnvManager.

Start in TouchDesigner

Run this from the Textport or an Execute DAT onStart() callback:

import dcc_mcp_touchdesigner

server = dcc_mcp_touchdesigner.start_server()
print(server.mcp_url)

start_server() is idempotent inside one TouchDesigner process. It loads the bundled skill by default, selects an OS-assigned loopback port, starts the main-thread pump, and advertises the instance to a running DCC-MCP gateway. Stop it explicitly during project teardown when needed:

dcc_mcp_touchdesigner.stop_server()

Typed tools

Tool	Contract	Risk
get_project_info	Read redacted host/project identity, cook rate, real-time mode, and root count	Read-only
list_operators	List bounded direct/recursive operators with an optional family/type filter	Read-only
inspect_operator / inspect_connections	Read flags, cook diagnostics, and connector topology	Read-only
get_op_parameters	Read selected or bounded parameters from one operator	Read-only
create_operator	Create a documented operator type under an explicit COMP	Mutation
connect_operators	Connect an explicit output connector to an explicit input	Mutation
disconnect_operator_input	Disconnect one exact input without touching sibling connections	Idempotent mutation
set_op_parameter	Set one parameter and return its evaluated value	Idempotent mutation
pulse_op_parameter	Pulse one exact parameter with bounded frame/second duration	Mutation
set_operator_flags	Atomically update allowlisted flags with rollback	Idempotent mutation
set_operator_layout	Atomically set bounded Network Editor position/size fields with rollback	Idempotent mutation
get_dat_content / set_dat_content	Read/write bounded, language-independent Unicode Text/Table DAT content with SHA-256 concurrency	Read / mutation
get_timeline_state / set_timeline_state	Read or atomically update root frame/play/cook controls	Read / mutation
capture_top	Save one TOP to an explicit PNG path with size and SHA-256 metadata	File write
save_project	Save the current project to an explicit .toe path	File write
delete_operator	Delete one explicitly addressed non-root operator	Destructive

All 19 tools have JSON input/output contracts and are dispatched on TouchDesigner's main thread. File-writing tools require an explicit absolute path and reject accidental overwrite unless overwrite=true is supplied. Root deletion and executable-DAT mutation are always rejected. The catalog exposes no arbitrary Python or expression-evaluation tool.

Security controls

The public contract is typed-only: it has no arbitrary Python escape hatch. Recursive graph, parameter, connector, JSON, and DAT operations are bounded; DAT writes use optional SHA-256 optimistic concurrency and only target Text/Table DATs. DAT text is treated as arbitrary Unicode data rather than a finite language list: RTL text, combining marks, ZWJ sequences, and non-BMP characters are preserved without language detection or normalization. Operator and parameter identifiers still follow TouchDesigner's own naming rules. The adapter binds to loopback by default. Do not expose the per-instance port directly to an untrusted network. Use the DCC-MCP gateway when multiple instances or attributable agent sessions are required.

Runtime configuration

Variable	Purpose
DCC_MCP_TOUCHDESIGNER_SKILL_PATHS	Additional skill directories
DCC_MCP_TOUCHDESIGNER_METRICS	Enable Prometheus /metrics
DCC_MCP_TOUCHDESIGNER_ENABLE_GATEWAY_FAILOVER	Enable gateway failover; on by default

Development

py -3.11 -m pip install -e ".[dev]"
pytest
ruff check .
ruff format --check .
dcc-mcp-cli lint src/dcc_mcp_touchdesigner/skills/touchdesigner-scripting --warnings-as-errors
python -m build
python -m twine check dist/*

Unit and contract tests use a deterministic TouchDesigner API double. A release additionally requires a real TouchDesigner process, six readiness checks, discovery of all 19 typed tools, and a create/connect/layout/set/pulse/DAT/timeline/capture/save/delete chain through dcc-mcp-cli; simulation alone is not release evidence.

License

MIT
